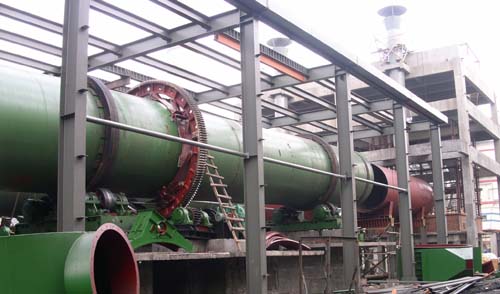

Fly ash dryer
Fly ash dryer
1.the effect of drying is well
2.high capacity
3.low consumption
The advantages of fly ash dryer
1.The investment required is 1/6 of the imported products.
2.It will ensure you the final material a moisture below 0.5% which is the first product of ash and slag product line
3.cylinder self-insulation thermal efficiency as high as 80% (traditional monocular dryer thermal efficiency was only 35%) to improve thermal efficiency of 45%.
4. fuel, kerosene vapor applicable. 20mm below the block to dry powder material feed pellets.
5. dryer than the monocular area of about 50% reduction, 50% reduction in civil engineering, power consumption decreased to 60%.
6. use and manufacture than ordinary steel, alloy steel wear plate 4 times.
7. can be customized easily control the required final moisture indicator.
8. outlet temperature is low, dust removal device a long time.
9. the size of gears without using the tugs turn.
technical parameters:
|
model |
capacity(T/h) | Early moisture(%) | Eventually moisture(%) | power (kw) | area(m2) | max inlet temperature |
| TD1600 | 8--12T/h | 20±5 | ≤5 | 85 | 7m*25m | 700~750°C |
| TD1900 | 12--16T/h | 20±5 | ≤5 | 109 | 7m*25m | 700~750°C |
| TD2200 | 16--20T/h | 20±5 | ≤5 | 128 | 8m*30m | 700~750°C |
| TD2500 | 20--26T/h | 20±5 | ≤5 | 143 | 8m*30m | 700~750°C |
| TD2800 | 26--36T/h | 20±5 | ≤5 | 210 | 8m*40m | 700~750°C |
