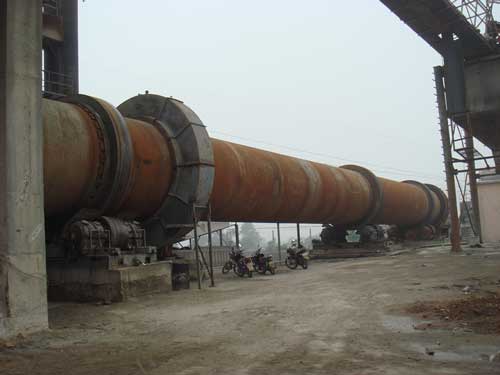

Metallurgy rotary kiln

Ms.Sara

Send a message to us

Product Details

Company Profile

Tel:86-371-67793255 Fax:86-371-67792566

features of Metallurgy rotary kiln

1.simple structure

2.power saving

3.low pollution

4,high capacity

Discription of Metallurgy rotary kiln

Rotary metallurgy Kiln is commonly used for heat processing of minerals and aggregates such as lime, cement, and iron ore. To achieve consistent quality results, it is important to maintain a uniform product temperature at the kiln entry, mid zone, and discharge. In most rotary kilns, the challenge with temperature process control is that the temperature sensor must view through flames or heavy smoke and dust. Consequently, when selecting a sensor, the design, wavelength, and alignment are all important considerations.

Technical data of Metallurgy rotary kiln

Size （m）	Capacity （t/d）	Main Motor		Main Reducer		Weight （t）	Remark
Size （m）	Capacity （t/d）	Model	Power(Kw)	Model	Speed ratio	Weight （t）	Remark
φ18x26	72	JZT2-72-4	30	JZQ750-1-Ⅰ	48.57	66
φ1.9/1.6x39	72	JZT2-72-4	30	JZQ750-1-Ⅰ	48.57	66
φ1.9x36	84	YCT315-4A	37	ZS110-5-Ⅲ	78.19	85.9
φ2.2x45	98.4	JZT82-6	55	ZA125	93.93	104
φ2.5x40	160	Z2--92	40	ZS125-2-Ⅰ	134.9	143
φ2.5x45	170	JTZ82-4	45	ZS125-4-Ⅰ	69.71	148
φ2.5x50	180	ZT3-72-4	30	ZS145-9-Ⅴ	122.8	173
φ2.5x60	168	YCT355-4B	75	ZS165-7-Ⅱ	99.96	222	Bauxite Calcining Kiln
φ3x48	360-480	YCT355-4B	75	ZS145-7-Ⅱ	100.4	170.6
φ3.1/2.5x78	216-240	Z4—225-31	75	ZS165-2-Ⅱ	57.17	268
φ3x48	700	ZSN4-280-21B	110	MSY56-28-Ⅱ	28	244	Decomposition outside kiln
φ3x100.94	450	ZSN4-280-21B	90	NZS995-90-Ⅵ-L	90	526	Planetary cooling?
φ3.2x50	1000	ZSN4-280-21B	160	MSY56-28-Ⅱ	28	252.4	Decomposition outside kiln
φ3.2x52	600	ZSN4-280-21B	125	ZSY1110-71BL	71.54	275	Pre-heater Kiln
φ3.3x52	1000	ZSN4-280-11B	125	NZS995-40-Ⅵ-BR	40	283	Decomposition outside kiln
φ3.5x52.5	1400	Z2-112	180	ZS177	79.22	360	Decomposition outside kiln
φ3.5x54	1500	ZSN4-3156-092	220	ZSY500-40-Ⅴ	40	368	Decomposition outside kiln
φ3.6x70	490	ZSN4-280-11B	125	ZS177-5-Ⅱ	79.2	419	Electricity Generation Kiln with remaining heat
φ3.95x56	2000	Z4-280-32BTH	250	ZSY560-40-Ⅰ	40	417	Decomposition outside kiln
Φ4x28	90	ZSN4-280-21B	160	ZSY500-71-Ⅳ	71	300
φ4x60m	2500	ZSN4-355-09Z	315	ZSY630-35.5-Ⅰ	34.6	523	Decomposition outside kiln
φ4.2x60m	2800	ZSN4-355-12	420	ZSY710-35.5-Ⅰ	35.5	---	Decomposition outside kiln
φ4.3x60m	3000	ZSN4-355-12	375	ZSY710-40	40	553	Decomposition outside kiln
φ4.8x75m	5000	ZSN4-400-92	630	JH710-40	42	841	Decomposition outside kiln
