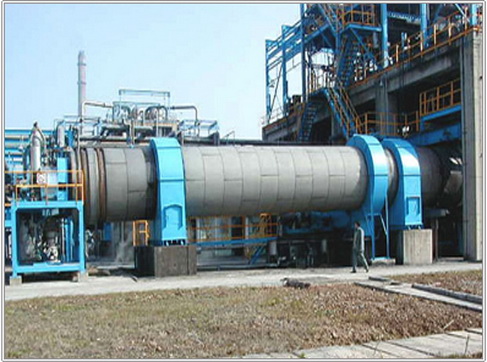

Steam Dryer
Description of Steam Dryer
Air steam dryer also knows as dryer, it is applied for the solid raw material which has flow ability. It is make heat intermediate (air, inert gases, gas or other hot gas) and raw material solid granule contact directly, solid granules are suspended in the airstreams, thus, two phases contacted area is enlarged, and the process of heat exchanger and material action is strengthened. This plant is widely applied for dispersed raw material drying.
Features of Steam Dryer
This drier has many advantages listed below:
1. Easily achieve automatic operation ,small investment, low energy consumption, small cubage, low labour cost,wide application ,it is a ideal advanced machine.
2. Fluidized state is stable, no dirty corner and broken out happen
Application of Steam Dryer
This equipment is widely applied for drying granule and powder. It can produce raw materials in the area of chemical, foodstuff, pharmacy, construction materials, plastic , for example: starch, fish powder, salt, lees, gluten, feed, plastic resin, coal powder, A.B.C benzoic acid, 2,3 acid, PVC, polypropylene, sodium sulfate, sodium pyrosulfite.
Technical Specification of Steam Dryer
|
TDGD120 | TDGD140 | TDGD160 | TDGD180 | TDGD200 | TDGD220 | TDGD250 |
| Capacity(t/d) | 50 | 100 | 200 | 300 | 400 | 600 | 900 |
| power(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 11 | 15 |
| Steam pressure(Mpa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Machine weight(kg) | 6350 | 8760 | 12700 | 13800 | 16700 | 19200 | 24200 |
| Rotation speed(r/pm) | 1-4 | 1-4 | 1-4 | 1-3 | 1-2 | 1-2 | 1-2 |
| Dimensions(m) |
5.8*1.9 *1.87 |
5.8*2.1 *2.07 |
6.3*2.26 *2.39 |
7.3*2.4 *2.59 |
7.85*2.66 *2.79 |
8.85*2.86 *2.99 |
9.9*3.16 *3.31 |
