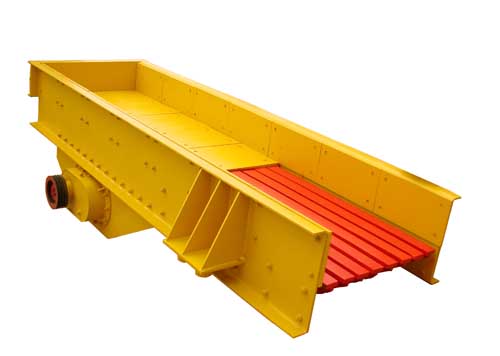

Vibrating feeder
discription of Vibrating feeder
Vibrating feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine selection, building materials, chemicals, etc.
Characteristics of Vibrating Feeder
Stable vibrating, reliable operation, long using life; can adjust the excitation force and change and control the flow stably and conveniently; the vibrating motor, as the excitation source, has low noise, small power consumption, good adjusting performance and without material splash. Simple structure, reliable running, convenient installation, light weight, small size, easy maintenance, and the enclosed type can prevent dust pollution.
Main technical parameters of Vibrating feeder
| Model | Max. feeding (mm) | Pocessing capacity(t/h) | Motor power(kw) | Obliquity of material trough | Total weight(kg) | Trough size (mm) | Dimensions (L*W*H)(mm) |
| GZD-850*3000 | 400 | 120 | 3.7*2 | 5 | 3607 | 850*3000 | 3110*1800*1600 |
| GZD-1000*3600 | 500 | 150 | 5.5*2 | 5 | 3895 | 1000*3600 | 3850*1950*1630 |
| GZD-1100*4200 | 580 | 240 | 5.5*2 | 5 | 4170 | 1100*4200 | 4400*2050*1660 |
| GZD-1100*4900 | 580 | 280 | 7.5*2 | 5 | 4520 | 4900*1100 | 5200*2050*1700 |
| GZD-1300*4900 | 650 | 450 | 11*2 | 5 | 5200 | 4900*1300 | 5200*2350*1750 |
| ZSW-380*95 | 500 | 96-160 | 11 | 0 | 4082 | 3800*960 | 3920*1640*1320 |
| ZSW-490*110 | 630 | 120-280 | 15 | 0 | 5352 | 4900*1100 | 4980*1830*1320 |
| ZSW-600*130 | 750 | 400-560 | 22 | 0 | 7800 | 6000*1300 | 6082*2580*2083 |
