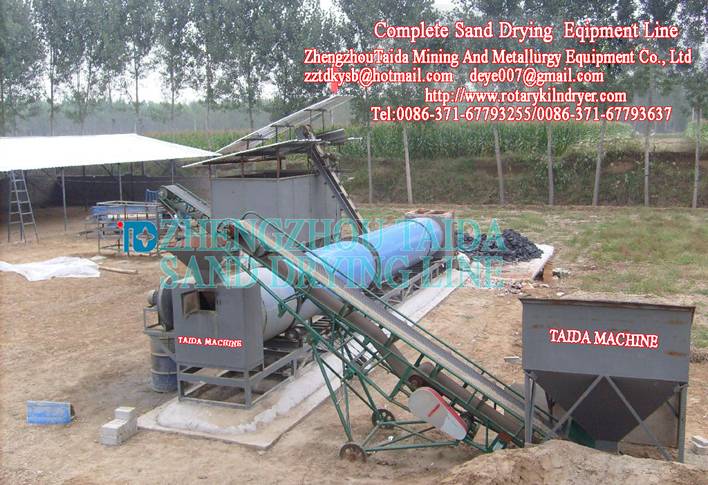

Sand Dryer
TDJ series of dryers are specially designed for sand drying. It has the dedicated structures not only for the dryer itself, but also for it’s equiped machines to avoid the sand being stick to inside walls of the machines and regaining moisture after drying. The dryer is wrapped a layer of insulating course to reduce heat loss.
Technical parameters of Sand dryer
|
Model (mm) |
Gradient (%) |
Rotation speed (r/min) |
Inlet air temperature (℃) |
Power (kw) |
Capacity (t/h) |
Weight (t) |
Remark |
|
TDSZ-600 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
Note: The capacity has much to do with the heating mode for the dryer. |
|
TDSZ-800 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
3.5 |
|
|
TDSZ-1000 |
3-5 |
3-8 |
≤700 |
5.5 |
2.0-4.5 |
5.6 |
|
|
TDSZ-1200 |
3-5 |
3-8 |
≤700 |
7.5 |
4-8 |
14 |
|
|
TDSZ-1500 |
3-5 |
2-6 |
≤800 |
15 |
8-15 |
17.8 |
|
|
TDSZ-1800 |
3-5 |
2-6 |
≤800 |
18.5 |
10-18 |
25 |
|
|
TDSZ-2000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
15-22 |
36 |
|
|
TDSZ-2200 |
3-5 |
1.5-6 |
≤800 |
22 |
18-25 |
53.8 |
|
|
TDSZ-2400 |
3-5 |
1.5-5 |
≤800 |
37 |
22-35 |
62 |
|
|
TDSZ-3000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-45 |
87.5 |
