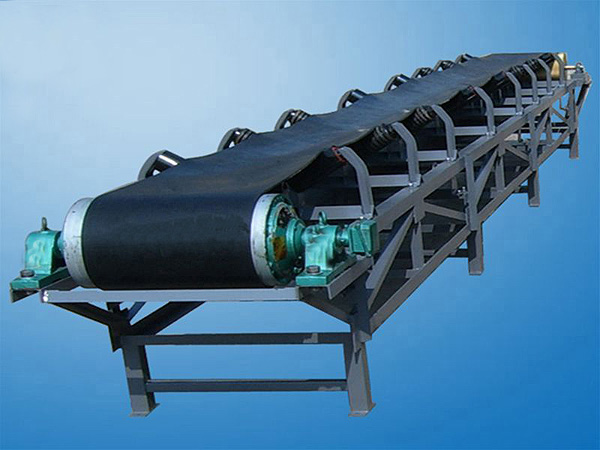

Belt conveyor
Introduction of Belt conveyor
Belt conveyor has the advantages of simle structure, large delivery capacity, simple structure, convenient maintenance and standardized components.Belt conveyoris widely used in the fields such as mining, metallurgy and coal to convey incompact materials or the end product materials. To meet different layout operating line demands, materials can be conveyed by single machine or several machines or even combination with other conveying facilities.
The Belt conveyor can work under the tempreture between -20°c and +40°c. The tempreture of materials to convey should be below 50°c.
Technical specification of Belt conveyor
|
Belt width (mm) |
Length(m) Power(Kw) | Speed(m/S) | Capacity (t/h) | ||
| 400 | ≤12/2.2 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.25-2.0 | 30-60 |
| 500 | ≤12/3 | 12-20/3-5.5 | 30-30/5.5-7.5 | 1.25-2.0 | 40-80 |
| 650 | ≤12/4 | 12-20/4-5.5 | 20-30/5.5-11 | 1.25-2.0 | 80-120 |
| 800 | ≤6/4 | 10-15/4-5.5 | 15-30/5.5-15 | 1.25-2.0 | 120-200 |
| 1000 | ≤10/5.5 | 10-20/5.5-11 | 20-40/11-22 | 1.25-2.0 | 200-320 |
| 1200 | ≤10/7.5 | 10-20/7.5-15 | 20-40/15-30 | 1.25-2.0 | 320-480 |
Preview ：Ring Hammer Crusher Next ：Double screw conveyor
