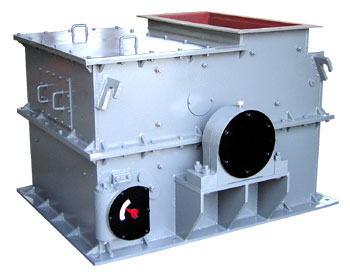

Ring Hammer Crusher

Product Details
Tel:86-371-67793255 Fax:86-371-67792566

Application of Ring Hammer Crusher

This series of ring-hammer crushers is suitable for crushing various materials of brittleness such as coal, gangue, coke, slay, shale and loose lime stone etc. Whose compressive resistance does not exceed 10Mpa and the surface moisture content should not be greater than 8%.

Ring Hammer Crusher Series Working Principle

This series of machine is a punching rotor type crushing machine with ring-hammer on the rotor. First the material fed to the crushing space is crashed by punching force of the ring-hammer rotating at high speed. mean while the material crushed gets kinetic energy from the ring-hammer and is punched forward the crushing board, then it gets punched the second time and fall to the sieve plate. The material is cut, squeezed and crushed into pieces by the force of ring-hammer and their own rubbing and get out of the machine will be sent to the metal collector and get cleared off periodically.

Specifications of Ring Hammer Crusher

model size rotation speed r/min max input size mm max output size mm

capacity
t/h

motor overall dimensions weight(without motor) kg
model Power
kw
L*w*h
mm
PCH-0402 400*200 960 200 ≤30 8-12 Y132M2-6 5.5 810*890*560 800
PCH-0404 400*400 970 16-25 Y160L-6 11 980*890*570 1050
PCH-0604 600*400 22-33 Y180L-6 15 1050*1270*800 1430
PCH-0606 600*600 980 30-60 Y225M-6 30 1350*1270*820 1770
PCH-0808 800*800 740 75-105 Y280M-8 45 1750*1620*1080 3600
PCH-1010 1000*
1000
300 160-200 Y315M2-8 90 2100*2000*1340 6100
200-245 Y135M3-8 110
PCH-1016 1000*
1600
300-350 Y355M2-8 160 2700*2000*1350 9200
400-500 YKK400-8 220
PCH-1216 1200*
1600
400 500-620 YKK400-8 280 3100*2800*1750 15000
620-800 YKK450-8 355
PCH-1221 1200*
2100
800-1000 YKK450l-8 450-400 3620*3350*1950 24000
