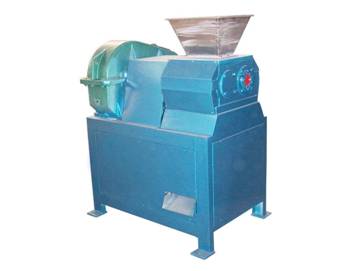

Working principle of Double-Roller Granulator

A pair of mating gear roller is used as the working part for overstocking material. The type of working principle is continuous extruding granulation of positive-displacement. The plant can be adapted widely, and the end products possess higher intensity and uniform length. The shape of particle is cylindrical. The diameter of particle is generally from 3.5mm to 10mm.The rate of end products is ≥85%.

Applied scope of Double-Roller Granulator

This plant is widely applied in the field of Catalyzer, Auxiliary, Additive, Daily chemicals, Agrochemicals and etc.

Merits of Double-Roller Granulator

1;As the material is extruded by means of rolling of gears and positive-displacement compressing, it possess a wider adaptability to varying material, and is especially suited for granulation with thixotropy.

2;The Scraping cutter installed inside made the particle have the same length.

3;Wetness required for granulation and the particle granulated by this plant is lower and the particle granulated by this plant is more intensive than screw type granulator.

Main technical parameters of Double-Roller Granulator
