mixing barrel

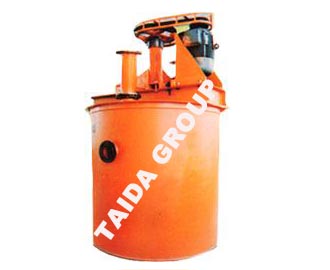

Description of mixing barrel
This machine is driven by the V-belt drive motor rotating impeller. Drugs and medicines and pulp slurry are mixed uniformly and sufficiently, which increases reaction time and strengthen the reaction quality of pharmaceutical drugs. The machine applies to mineral dressing industry, as well as mixing of chemical ingredients.
Specifications of mixing barrel
| Specification | Chute inner dimension | Effictive cubage | Mixer | Motor | Weight(kg) | |||
| Diameter(mm) | Depth | (m3) | Diameter(mm) | Rotate speed(r/min) | Model | Power(kw) | ||
| (mm) | ||||||||
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 71 |
