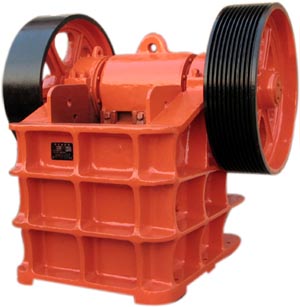

Brief Introduction of jaw crusher

The series of jaw crusher has the characteristics of large breaking ratio, uniform product size, simple structure, reliable operation, easy maintenance, low operating costs and so on. Jaw crushers are widely used in mining, melting, building materials, roads, railways, water conservancy, chemical industry and many other sections to crush all kinds of materials of which the compressive strength is less than 320 Mpa.

jaw crusher Uses and servicable range:

1. The series of jaw crushers are mainly used for middle crushing and fine crushing of mid-hard ore and rocks in the sections of metallurgy, mining, chemical industry, cement, construction, ceramics together with refractories.
2.These crushers are most suitable to crush all kinds of soft and hard ore whose compressive strength is not higher than 300 Mpa. The maximum lumpiness of materials to be crushed should follow the technical data chart.

Operating principle:

The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed to reach the crushing target. When the movable jaw is down, the angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.

Jaw crusher Technical specification

type	Material inlet size (mm）	Max material size(mm)	Material outlet size (mm)	capacity (t/h)	Eccentric shaft size (r/min)	Motor power (kw)	weight (t)	Overall size（l×w×h）(mm)
PE60×100	60×100	45	3-10	1-3	470	1.1	0.116	338×190×106
PE150×250	150×250	125	10-40	1-3	250	5.5	0.6	720×660×850
PE200×300	200×300	180	15-50	2-6	260	7.5	1	910×750×990
PE200×350	200×350	180	18-70	3-10	260	11	1.3	1000×870×990
PE250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE430×600	430×600	400	90-140	35-60	275	37	6.5	1820×1810×1710
PE475×600	475×600	400	90-140	37.5-81	275	55	11.7	1850×1820×1720
PE500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE600×900Ⅱ	600×900	500	65-160	50-180	250	55-75	17	2190×2206×2300
PE600×900	600×900	500	65-160	60-200	250	75	20	2290×2290×2400
PE620×900	620×900	500	95-145	31-70	250	55-75	15.5	1840×1400×960
PE670×900	670×900	520	195-245	66-83	250	55-75	14.3	1876×1310×960
PE750×1060	750×1060	630	80-140	115-330	250	110	29	2660×2430×2800
PE800×1060	800×1060	640	100-200	85-143	250	110	30	2556×1780×1970
PE870×1060	870×1060	660	200-260	290-336	250	110	31.5	2810×2430×2800
PE900×1060	900×1060	685	230-290	160-400	250	110	33	2870×2420×2940
PE900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE1200×1500	1200×1500	1020	150-300	400-800	180	160	100.9	4200×3300×3500
PEX150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX250×750	250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX250×1000	250×1000	210	25-60	16-52	330	37	7	1560×1950×1390
PEX250×1200	250×1200	210	25-60	20-61	330	45	8.5	2140×1660×1500
PEX300×1300	300×1300	250	20-90	16-105	300	75	11	2720×1950×1600
PEV430×650	430×650	380	40-100	16-105	300	75	11	2720×1950×1600
PEV500×900	500×900	430	50-100	55-130	275	55	10	1854×1284×1335
PEV600×900	600×900	500	70-130	85-170	250	75	13	1912×1392×1515
PEV750×1060	750×1060	650	80-140	115-224	250	90	24.2	2200×1660×1660
