Discription of mixing flotation separator

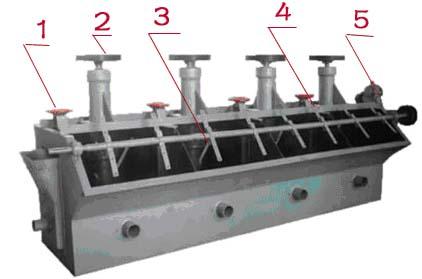

This type of flotation machine is formed by U through solid, hollow shaft inflation, suspension rotor and new type impeller. The cone impeller lean backwards, the blending quantity is big and the pressure head is small, the advantages are: simple structure and low energy consumption. Inside the impeller, there is air distributor, which distributes air into most parts of impeller evenly.

When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low_pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re-mis with air. The remained slurry flows to the next trough until becomes residue.

KYF inflatable mechanical mix type flotation machine

Model		KYF-1	KYF-2	KYF-3	KYF-4	KYF-8	KYF-16	KYF-24	KYF-38
Chute dimen-sions	Length/mm	1000	1300	1600	1800	2200	2800	3100	3600
	Width/mm	1000	1300	1600	1800	2200	2800	3100	3600
	Height/mm	1100	1250	1400	1500	1950	2400	2900	3400
Single effective weight/kg		826.31	1419	1885	2206	3600	5900	7500	10300
Effective storage/m³		1	2	3	4	8	16	24	38
Capacity(calculated by slurry volume)(m³/min)		0.2-1	0.4-2	0.6-3	1.2-4	3��8	4��16	4��24	10��38
Main shaft motor	Model	Y132M1-6	Y160M2-8	Y160L-8	Y180L-8	Y200L-8	Y250M-8	Y250M-8	Y280S-8
	Power/kw	4	5.5	7.5	11	15	30	30	37
	Rotation speed(r/min)	960	720	720	970	730	730	730	740
Impeller	Diameter/mm	340	410	480	550	630	740	800	880
	Height/mm	215	256	300	340	390	460	��	545
	Rotation speed(r/min)	281	247	219	200	175	160	150	138
	Cicular velocity(m/s)	5	5.3	5.5	5.76	5.77	6.7	6.25	6.36
Loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power/kw	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotation speed(r/min)	1400	1400	1400	1400	1400	1400	1400	1400
Loam board	Rotation speed(r/min)	18	18	16	16	16	16	16	16
Loam board	Diameter/mm	500	500	580	600	600	700	700	500
Wind pressure of fan/kPa		>=12.6	>=14.7	>=19.8	>=19.8	>=21.6	>=25.5	>=30.4	��34.3
Max. air injection amount(m³min/m²)		2	2	2	2	2	2	2	2

XCF inflatable mechanical mix type flotation machine

Model		XCF-1	XCF-2	XCF-3	XCF-4	XCF-8	XCF-16	XCF-24	XCF-38
Chute dimen-sions	Lenght/mm	1000	1300	1600	1800	2200	2800	3100	3600
	Width/mm	1000	1300	1600	1800	2200	2800	3100	3600
	Height/mm	1100	1250	1400	1500	1950	2400	2900	3400
Single effective weight/kg		1154	1659	2259	2669	3868	6520	8000	11000
Effective cubage/m³		1	2	3	4	8	16	24	38
Capacity(Calculated by slurry volume)(m³/min)		0.2-1	0.4-2	0.6-3	1.2-4	3-8	4-16	4-24	10-38
Main shaft motor	Model	Y132M2-6	Y160M-6	Y160L-6	Y180L-6	Y200L2-6	Y280S-8	Y280S-8	Y280S-6
	Power/kw	5.5	7.5	11	15	22	37	37	45
	Rotation speed(r/min)	960	970	970	970	970	740	740	980
Impeller	Diameter/mm	400	460	540	620	720	860	950	-
	Height/mm	155	175	207	247	321	349	-	-
	Rotation speed(r/min)	358	331	266	215	185	160	153	-
	Circular velocity(m/s)	7.5	7.5	7.5	7	6.97	7.6	7.6	7.4
Loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power/kw	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotation speed(r/min)	1400	1400	1400	1400	1400	1400	1400	1400
Loam board	Rotation speed(r/min)	18	18	16	16	16	16	16	16
Loam board	Diamtete/mm	500	500	580	600	600	700	700	700
Wind pressure of fan/kPa		>=12.6	>=14.7	>=19.8	>=19.8	>=21.6	>=25.5	>=30.4	>=34.3
Max. air injection amount(m3min/m2)		2	2	2	2	2	2	2	2
