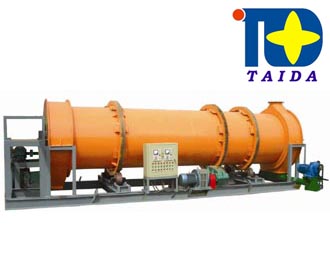

Rotary dryer
Brief Introduction of Rotary dryer
Rotary dryer, also known as rotary drum dryer.Rotary dryer is widely used in building materials, metallurgy, chemicals, industrial drying slag cement limestone, coal, slag, clay and other materials. The aircraft mainly by the Rotary, Jan plate, transmission, seals, and other support equipment and components. With a reasonable structure, well-produced, high yield, and low consumption, the advantages of operating convenience. Rotary dryer's quality assurance, the highest free installation debugging agent can be checked with other like about rotary dryer than quality or prices.
Rotary dryer Technical Specification
| type(mm) | indiclination(%) | rotation speed(r/min) | input tempreture(℃) | motor power(kw) | outpur(t/h) | weight(t) | reforance |
| Φ600×6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 | |
| Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 | |
| Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 | |
| Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 | |
| Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 | |
| Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 | |
| Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 | |
| Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 | |
| Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 | |
| Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 | |
| Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 | |
| Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 | |
| Φ2800×15000 | 3-5 | 1.5-5 | ≤800 | 40 | 20-35 | 72.5 | |
| Φ2800×18000 | 3-5 | 1.5-5 | ≤800 | 40 | 25-35 | 75 | |
| Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 28-40 | 78 | |
| Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-45 | 104.9 |
