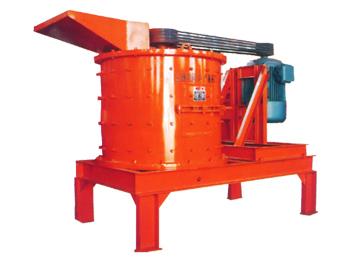

Vertical composite crusher(small-sized sand making machine)haas cobined technology both at home and abroad, and optimized main technical parameters. It’s a new product of fine crushing and coarse crushing,having the advantages of impact crushers and hammer crushers, mainly used in medium or fine crushing of cement raw material or clinker, as well as the crushing of building sand, iron ore, rocks, gypsum, coal, slags and other mid-hard ores. It has the characteristics of large crushing rate, less consumption of energy, smooth operation, simple structure and convenient maintenance. It is really new type of crushing equipment of multiple uses, high efficiency and low cost.

Technical specification:

type	PFL500	PFL600	PFL800	PFL1000
Rotor diameter（mm）	Φ450	Φ550	Φ650	Φ850
height（mm）	Φ500	Φ600	Φ800	Φ1000
Main shaft speed（r/min）	1400	1200	1100	980
Material-in size（mm）	50	50	50	80
output（t/h）	3-8	5-10	10-20	25-40
power（kw）	4-5.5	4-7.5	4-22	4-45
