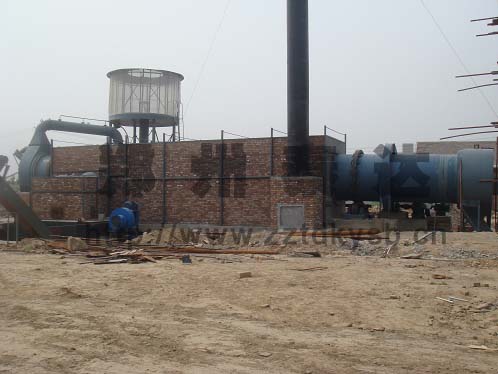

Dregs dryer

Dregs dryer

Introduction of dregs dryer:

Dregs dryer uses high-temperature and rapid drying process, the successful combination of a hot-air trough rotary vane dryer and air dryer advantages.Mainly with the dregs (penicillin mycelium, antibiotics dregs, oxytetracycline dregs), Marc (apple pomace, tomato residue skin, pear slag, etc.), bacterial protein, monosodium glutamate, sugar beet residue, starch residue, cornresidue, lemonacid tail liquid, feed, protein powder, sludge drying,etc.Materials is tossed,crushed in high-speed rotating blades and dispersed in the body.Meanwhile it contact with the hot air fully and effectivly, and strongly to convective heat transfer.Thereby achieve a transfer process of qualitativeand heat .At last gain a high efficiency of two grade consecutive drying.

Specifications:

(1)Advanced drying process. high-temperature rapid drying process,high heat transfer coefficient,powerful hear efficiency,strong dry strength.
(2)The combination of high-speed stirring and air drying can fully dispersed the material.Thus greatly improving the contact area of material and the heat medium which is conducive to drying process.
(3)The machine uses a special scraper, avoiding the material sticking to the wall.
(4) Adapting to a wide range,simple operation,less maintenance,stable product quality.
(5) The machine is designed for drying bad residue class of materials .It has a variable angle of rotating blades and adjustable rotor speed.
(6) There is a wet material reflux layer of the upper body and the air dryer set up a special mixers.

Technical Specification:

type	TDD800	TDD 1000	TDD 1500	TDD 2200
Quantity delivered of  feed screw	≥800kg/h	≥1200kg/h	≥1800kg/h	≥3000kg/h
Evaporation capacity of moisture	350kg/h	650kg/h	900kg/h	1300kg/h
Rotate speed and power of the rotary drum	3-4rmp,4kw	3-4rmp,5.5kw	3-4rmp,10kw	3-4rmp,15.5kw
Rotate speed and power of the crush axis	150-250rmp,3kw	150-250rmp,4kw	150-250rmp,4kw	150-250rmp,5.5kw
Power of induced draft fan	7.5kw	11kw	15kw	18.5kw
Coal consumption(standard coal)	≤70kg/h	≤110kg/h	≤170kg/h	≤220kg/h
Power consumption	≤10degree/H	≤15degree/H	≤20degree/H	≤30degree/H
area	≥80m2	≥100m2	≥120m2	≥150m2
Height of the plant	≥3.8m	≥4.2m	5.5m	≥5.5m
Weight of the dryer	5.5T	8.5T	15.5T	23.5T
