TDJ series of dryers are specially designed for sand drying. It has the dedicated structures not only for the dryer itself, but also for it’s equiped machines to avoid the sand being stick to inside walls of the machines and regaining moisture after drying. The dryer is wrapped a layer of insulating course to reduce heat loss.
Sand Dryer

Technical parameters

Model (mm)	Gradient (%)	Rotation speed (r/min)	Inlet air temperature (℃)	Power (kw)	Capacity (t/h)	Weight (t)	Remark
TDSZ-600	3-5	3-8	≤700	3	0.5-1.5	2.9	Note: The capacity has much to do with the heating mode for the dryer.
TDSZ-800	3-5	3-8	≤700	4	0.8-2.5	3.5
TDSZ-1000	3-5	3-8	≤700	5.5	2.0-4.5	5.6
TDSZ-1200	3-5	3-8	≤700	7.5	4-8	14
TDSZ-1500	3-5	2-6	≤800	15	8-15	17.8
TDSZ-1800	3-5	2-6	≤800	18.5	10-18	25
TDSZ-2000	3-5	1.5-6	≤800	18.5	15-22	36
TDSZ-2200	3-5	1.5-6	≤800	22	18-25	53.8
TDSZ-2400	3-5	1.5-5	≤800	37	22-35	62
TDSZ-3000	3-5	1.5-5	≤800	75	32-45	87.5

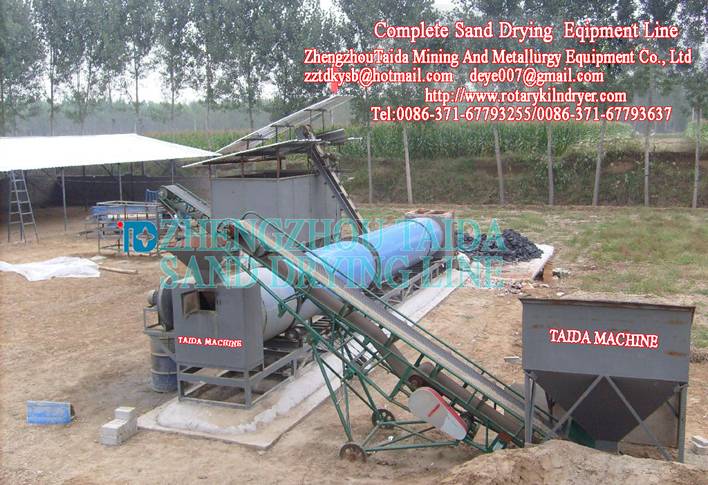

Working sand dryer in customer’s site
