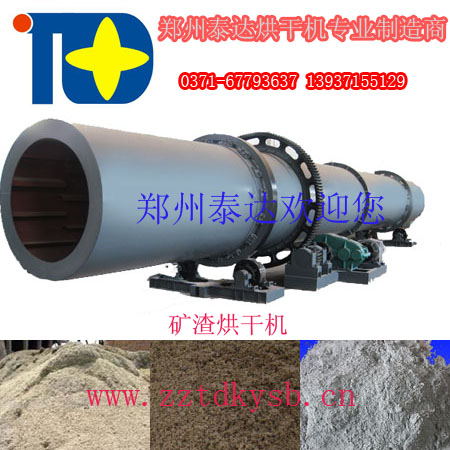

Slag dryer

It has advantages of high drying capacity, steady running, low energy consumption, convenient operation, high output and so on.

Technical Specification:

Item Specification	Shell inner dia.	Shell length	Slope 0	Rotating speed r/min	Flow	Motor power kw	Output t/h	Inlet moisture	Outlet moisture	Inlet hot air temp.	Outlet hot air temp.	Weight t
φ1.5×12m	1500	12000	2.0	3.4		15	∼4	15∼10%	1∼30%	800∼7000c	150∼900c	19.6
φ1.8×15m	1800	15000	2.0	4.04		18.5	∼6.5					25
φ2.2×14m	2200	14000	2.0	3.68		37	∼11					44
φ2.2×18m	2200	18000	2.0	2.9		37	∼12					48
φ2.4×18m	2400	18000	2.0	3.27		45	∼16					56
φ2.6×24m	2600	24000	2.5	3.2		55	∼22					72.5
φ2.8×24m	2800	24000	2.0	3.4		55	20-40					87
φ3.0×20m	3000	20000	2.29	3.1		75	25-60					105
φ3.0×25m	3000	25000	2.29	3.2		75-90	35-80					125
φ3.2×25m	3200	25000	2-2.29	4.14		90-132	60-150					155
φ3.4×28m	3400	28000	2-2.29	3-4.1		110-132	70-150					162
φ3.6×28m	3600	28000	2.0	2.6-4		160-200	80-155					168
